Platinum Electric Low-Clearance Recess Kit
Have questions or need help choosing the right option for your backyard? Call our team at 727-270-8701 and we’ll be happy to assist you.
Choose options
A built-in look, even in a shallow ceiling.
You imagined the heater disappearing into the ceiling. Then someone told you the ceiling was too shallow, and the dream got traded for a hanging box. You want the clean ceiling AND the warm evening, and you should not have to choose.
Specifications
- Product: Bromic Platinum Electric Low-Clearance Recess Kit
- Price in source: $1309.00
- For: Bromic Platinum Electric and Platinum Electric Marine heaters, 2300W / 3400W / 4500W models

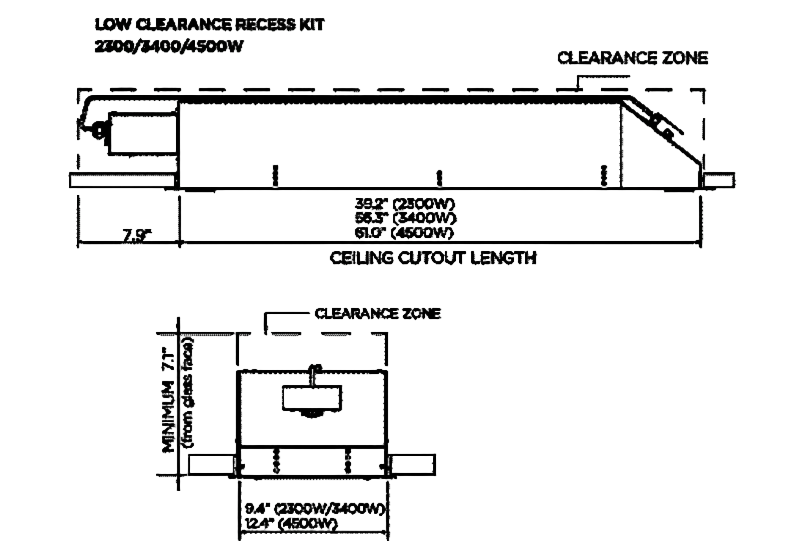

- Minimum ceiling cavity: as shallow as 7.1 in; fits standard ceiling joists
- Certification: UL Certified
- Integrated cooling fan with temperature-control frame; fan requires a dedicated power supply independent from the heater electrical connection
- Includes: one complete low-clearance recess kit in the selected power and series configuration, including factory-supplied recess components and mounting hardware
- Not included: heater, dedicated fan power supply, field wiring or conduit, controls, structural framing, site-specific fasteners, installation labor, unrelated accessories
- Installation: verify ceiling joists, cavity dimensions and required clearances; installation by a licensed professional in accordance with the current Bromic manual and local codes
- Note: do not claim compatibility with Tungsten heaters; Platinum Electric and Platinum Electric Marine only
Key Details
- Fits ceiling cavities as shallow as 7.1 inches, including standard ceiling joists
- For new builds AND retrofit projects, so existing patios can get the flush look too
- Fits Platinum Electric heaters in 2300W, 3400W and 4500W models, standard and Marine
- Integrated cooling fan with temperature-control frame manages the tight space
- UL Certified for a finished, safe recessed installation
- The cooling fan needs its own dedicated power supply, separate from the heater's electrical connection
Seven inches is enough.
The Bromic Platinum Electric Low-Clearance Recess Kit fits ceiling cavities as shallow as 7.1 inches, so heaters can sit flush even where the standard kit cannot go. It works for new builds and for retrofits, which means an existing patio can still get the finished look you thought was out of reach.
This is the Sunset Living Approach in the details. You designed the evening first. An integrated cooling fan with a temperature-control frame keeps the shallow space safe and comfortable, and the UL Certification backs it. The right mount is what makes the evening actually work.
Your ceiling said no to the recessed heater.
A gorgeous ceiling with a heater box hanging off it feels like a compromise you see every single night. Or worse, you were told a recessed heater simply cannot work in a shallow ceiling, so you stopped asking. The visible hardware ruins the architecture, and every evening the room reminds you of the plan that did not happen.
The Bromic Platinum Electric Low-Clearance Recess Kit creates a clean, flush-mounted installation for compatible Platinum Electric heaters in ceiling cavities as shallow as 7.1 in. Designed for new builds and retrofit projects, the UL Certified kit combines a finished recessed appearance with reduced cavity clearance requirements.
Key Features
- Flush, minimalist ceiling installation
- Fits standard ceiling joists and cavities as shallow as 7.1 in
- Compatible with Platinum Electric and Platinum Electric Marine
- Options for 2300W, 3400W and 4500W
- Integrated cooling fan and temperature-control frame
- UL Certified
What's Included
One complete Bromic Low-Clearance Recess Kit in the selected power and series configuration, including factory-supplied recess components and mounting hardware.
Not Included
Heater, dedicated fan power supply, field wiring or conduit, controls, structural framing, site-specific fasteners, installation labor and unrelated accessories are not included.
Installation Note
The integrated cooling fan requires a dedicated power supply independent from the heater electrical connection. Installation must be completed by a licensed professional in accordance with the current Bromic manual and local codes. Verify ceiling joists, cavity dimensions and required clearances before installation.
Compatibility
Platinum Series
Bromic Platinum Electric and Platinum Electric Marine, 2300W, 3400W, and 4500W. Ceiling cavities from 7.1 inches. The fan needs its own power.
The shallow ceiling stops being a reason to settle for a hanging box.
Existing patios get a second chance at a clean, finished ceiling.
The integrated fan keeps the tight space working the way it should.
UL Certification gives you confidence in a recessed finish in shallow cavities.
The evening looks designed from above, and feels warm below.
Need help?
Frequently Asked Questions
The kit is made for cavities as shallow as 7.1 inches and fits standard ceiling joists. If the standard recess kit cannot work in your ceiling, this is the one designed for it.
Platinum Electric and Platinum Electric Marine heaters in the 2300W, 3400W and 4500W models. Select the kit that matches your heater's power group and series.
The integrated cooling fan and temperature-control frame manage heat in the tighter cavity space. The fan requires a dedicated power supply, independent from the heater's electrical connection. Your electrician will plan for both.
Yes. Unlike the standard kit, the low-clearance kit is designed for retrofit projects as well as new builds. Verify your ceiling joists and cavity dimensions before ordering.
One complete low-clearance recess kit with factory-supplied recess components and mounting hardware. The heater, the dedicated fan power supply, field wiring or conduit, controls, structural framing, site-specific fasteners and installation labor are not included.
Authorized Bromic Heating Dealer. Genuine products, full manufacturer warranty, expert guidance.
